Quick Summary: Cast Vinyl vs. Calendared Vinyl
- 3M Cast Vinyl delivers a premium, highly conformable liquid-cast film built specifically for curved commercial vehicles. It lasts 5–7+ years without shrinking or lifting.
- Calendared Vinyl relies on thicker, rolled PVC engineered for flat sign panels and short-term displays. It lasts only 1–3 years before shrinking and cracking on active fleet vehicles.
- The Verdict: While calendared film reduces your upfront invoice, premium cast vinyl slashes your cost-per-mile ROI and protects your vehicle’s factory paint when you rebrand.
When shopping for commercial vehicle wraps or fleet graphics, business owners frequently see quotes that differ by thousands of dollars. While selecting a lower estimate keeps initial overhead down, a drastically discounted price almost always signals a critical compromise: the shop is using the wrong vinyl material.
Both 3M cast vinyl and intermediate calendared vinyl look sharp on day one. However, their performance diverges radically once your drivers hit the road and log 100,000 miles in real-world weather.
Let’s examine how these two materials differ technically—and why budget vinyl ends up draining your maintenance budget over time.
1. How Manufacturers Build Vinyl: Cast vs. Calendared
The long-term durability of your fleet graphics traces directly back to the manufacturing floor.
Premium Cast Vinyl
Manufacturers produce cast vinyl by pouring a liquid formulation onto a casting sheet, allowing the material to solidify naturally without internal stress. Because factory equipment never stretches or forces the film, cast vinyl carries no mechanical “memory.” Consequently, when master installers apply it over complex body contours, deep door channels, and rivets, the film stays dimensionally stable and perfectly flat for years.
Intermediate Calendared Vinyl
In contrast, manufacturers produce calendared vinyl by melting PVC resin and pushing it through heavy steel rollers under massive pressure—much like rolling out dough. Because this aggressive process continually stretches the material, the finished film constantly tries to shrink back to its original shape. As a result, summer heat waves and winter freeze cycles trigger immediate shrinkage across your fleet.
2. Head-to-Head Technical Comparison
| Feature / Metric | Premium 3M Cast Vinyl | Standard Calendared Film |
| Outdoor Durability | 5 to 7+ years | 1 to 3 years maximum |
| Vehicle Conformability | Wraps seamlessly around deep channels, tight curves, & rivets | Suits flat surfaces best (box truck panels, wall graphics) |
| Dimensional Stability | Maintains zero shrinkage; seals edges permanently | Shrinks continually, curling edges & exposing adhesive |
| Wrap Removal | Peels cleanly with heat; preserves factory paint | Grows brittle, breaks into tiny shards, & leaves heavy glue |
| Laminate Pairing | Pairs with cast UV-protective overlaminates | Uses short-term monomeric or unlaminated film |
3. The Hidden Liabilities of Budget Vehicle Wraps
Opting for budget vinyl on your service vans or delivery trucks creates hidden financial liabilities that surface rapidly within 12 to 18 months.
Edge Lifting and Water Intrusion
Because calendared film constantly pulls inward to shrink, it quickly snaps away from recessed body channels, door handles, and bumper seams. This movement causes severe edge lifting. Rain, high-pressure road spray, and de-icing chemicals then seep directly beneath the adhesive layer, destroying the wrap from the inside out.
Rapid Fading and UV Destruction

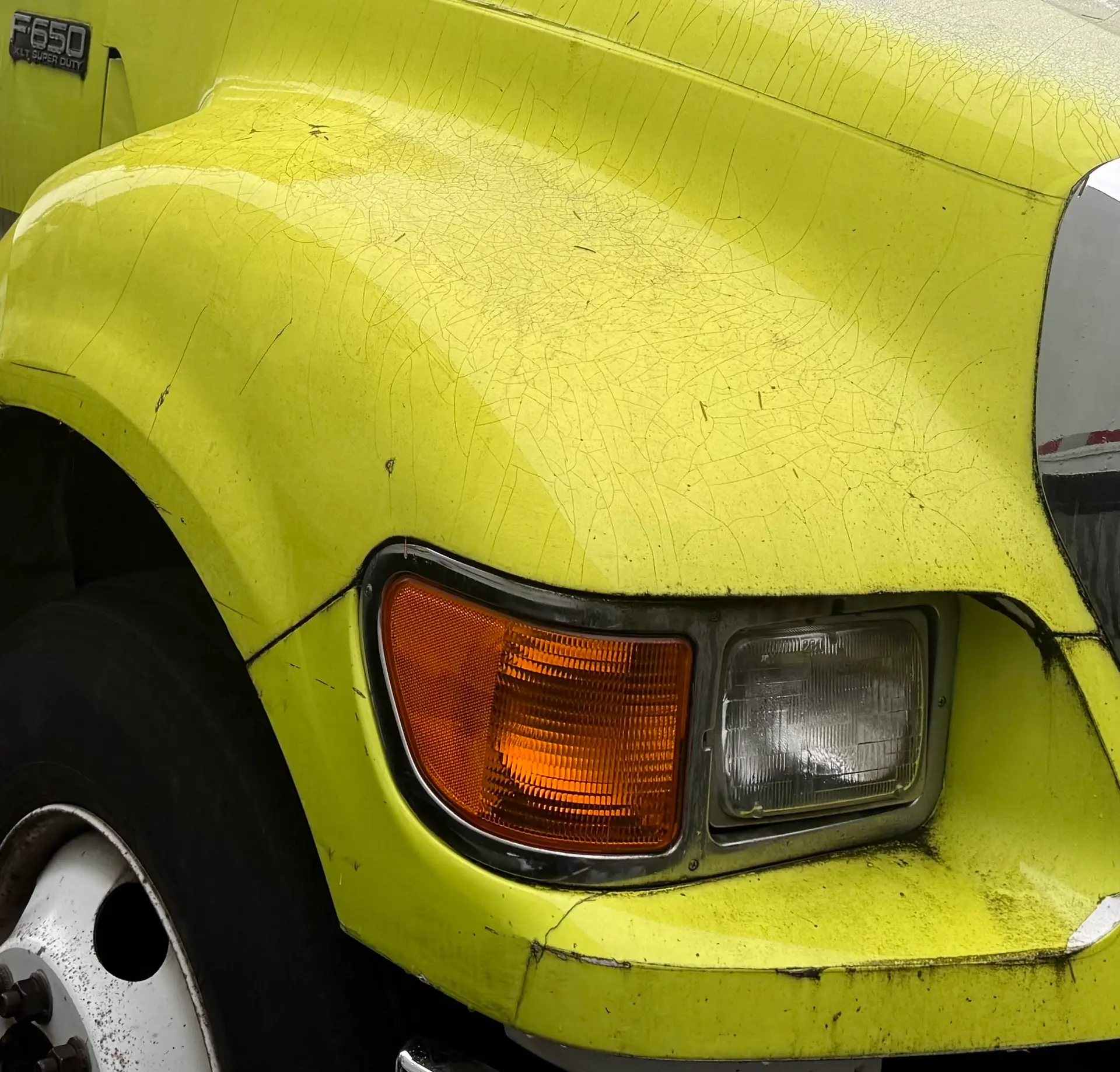

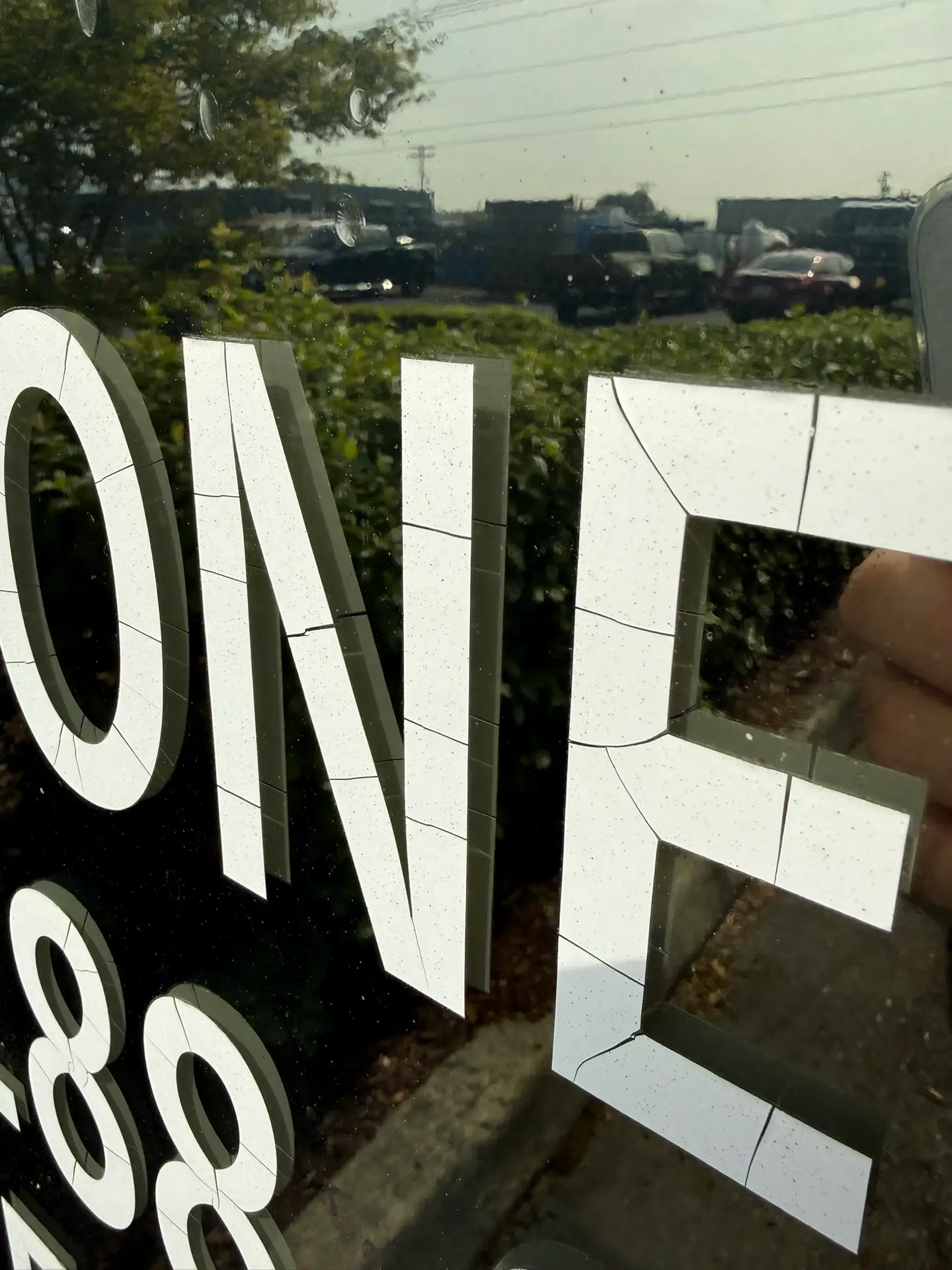

Commercial fleets face unrelenting sun, road salt, and harsh weather. Without the robust UV inhibitors engineered into 3M cast vinyl and matching cast laminates, budget graphics lose their color vibrancy within months, growing brittle and cracking along every major body line.
High Labor Costs During Rebranding and Removal
When your business rebrands or reaches the end of a vehicle lease, cast wraps peel away smoothly in large sheets using simple heat, leaving the underlying OEM paint intact. Conversely, calendared film bakes permanently into the vehicle clear coat. Scrapers must remove it inch by inch while technicians apply heavy solvents to strip the baked-on glue—often adding $1,000 or more per vehicle in extra labor alone.
4. Why Certified Installation Guarantees Longevity
Even the highest grade 3M cast vinyl requires master craftsmanship to perform as intended. Certified installers execute rigorous surface preparation, apply exact physical tensioning, and post-heat the film to reset its memory around tight vehicle contours.
By partnering with UASG and PDAA Certified installers, you ensure that your fleet graphics meet strict factory installation standards, protecting both your 3M warranty and your company’s professional image.
Frequently Asked Questions About Fleet Graphics
How long does a 3M cast vinyl vehicle wrap last?
A professionally installed 3M cast vinyl wrap lasts between 5 and 7 years when you maintain and wash the vehicle regularly.
Can shops ever use calendared vinyl on commercial vehicles?
Shops can successfully use calendared film for short-term promotional graphics or flat-sided commercial vehicles like box trucks and smooth utility trailers. However, installers should never apply it to curved vans, pickup trucks, or cars.
Will removing a cast wrap damage factory paint?
No. When installers apply cast vinyl over sound OEM factory paint, the film actively protects the finish underneath and removes cleanly using heat without damaging the clear coat.
Upgrade Your Commercial Fleet Graphics Today
Your commercial fleet acts as a continuous, 24/7 mobile billboard across your entire service territory. Choosing 3M cast vinyl guarantees that your graphics remain sharp, vibrant, and professional year after year.
Final Thoughts
Investing in a professional vehicle wrap is about more than just aesthetics; it’s a strategic business decision. By prioritizing expertise and certified craftsmanship, you ensure that your mobile marketing remains an asset rather than a liability. Your brand deserves a finish that lasts.
Ready to elevate your fleet? Trust the experts who understand the technical demands of high-quality graphics installation.
At Sir Graphic, we believe your visuals should work as hard as you do. That’s why we partner with certified professional graphics installers through the United Application Standards Group (UASG).
These experts bring a level of skill, experience, and attention to detail to every project that a hobbyist simply cannot match. As a result, your graphics won’t just look amazing on day one—they will keep delivering impact and durability for years to come. When you choose a certified installer, you’re choosing peace of mind and a flawless finish.
Ready to elevate your brand with expert installation? Contact Sir Graphic today and see how our certified professional graphics installers can bring your 2026 vision to life.
